Model | POWER(KW) | ROOM(M3) | Voltage(V) | AWG | WEIGHT(kg) | Dimensions | GW(kg) |
SAB-30 | 3 | 2-4 | 200-240 | 3×2.5 | 12 | 320*230*550 | 10 |
SAB-36 | 3 | 2.5-5 | 200-240 | 3×11 | 14 | ||
SAB-45 | 4.5 | 5-6 | 200-240 | 3×10 | 18 | 400*290*550 | 11-12.5 |
380-415 | 5×14 | ||||||
SAB-60 | 6 | 6-7 | 200-240 | 3×8 | 18 | 400*290*550 | |
380-415 | 5×13 | ||||||
SAB-80 | 8 | 9-10 | 200-240 | 3×7 | 20 | 400*290*550 | |
380-415 | 5×11 | ||||||
SAB-90 | 9 | 10-12 | 200-240 | 3×17 | 20 | 400*290*550 | |
380-415 | 5×11 |
Place of Origin: | Guangdong, China (Mainland) |
Brand Name: | DIOOIST |
Model Number: | SAB-30 |
Function: | Dry Steam |
Feature: | CON4 touch screen controller |

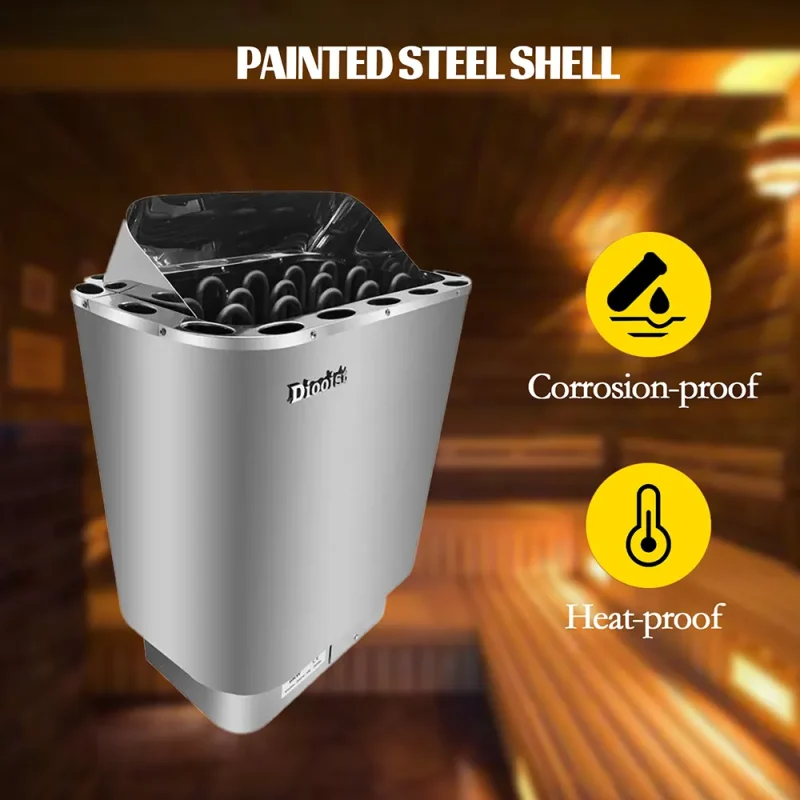

Main Material: | Electrolytic plate with spray |
Heating Elements material | Stainless Steel 840 with UL Certificate |
Power: | 3KW |
Voltage: | 220-240V/380-415V |
Frequency: | 50 hz-60hz |
Capacity: | 2-4CBM |
Usage: | sauna center, beauty salon |
Warranty: | 3 years |
Product dimension: | 440×290×450MM |
package size | 42.5*30.5*60.5/13KG |
weight: | 14KG |
Business mode: | Factory directly |
Features | Auto power off | Power off automatically |
Time setting | 30min-12Hour | |
Temperature setting | 50~110℃ | |
Touch screen control panel | The controller is installed outside the sauna room |
Optional controller |
DO-AT86 touch screen controller | 30m-12H/50~110℃ |
DO-135M touch screen controller | 1-12H/50℃~110℃ | |
DO-135T1 touch screen controller | 1-12H/50℃~110℃ | |
DO-135T2 touch screen controller | 1-12H/50℃~110℃ | |
DO-135T3 touch screen controller | 1-12H/50℃~110℃ | |
CON4 touch screen controller | 1-12H/50℃~110℃ |
ID | Model Number | Image |
1 | DO-135T3 | |
2 | DO-135T2 | |
3 | DO-135T1 | |
4 | AT-100 |
ID | Model Number | Image |
5 | CON4 LED Controler | |
6 | DO-AT86 | |
7 | DO-135M |
