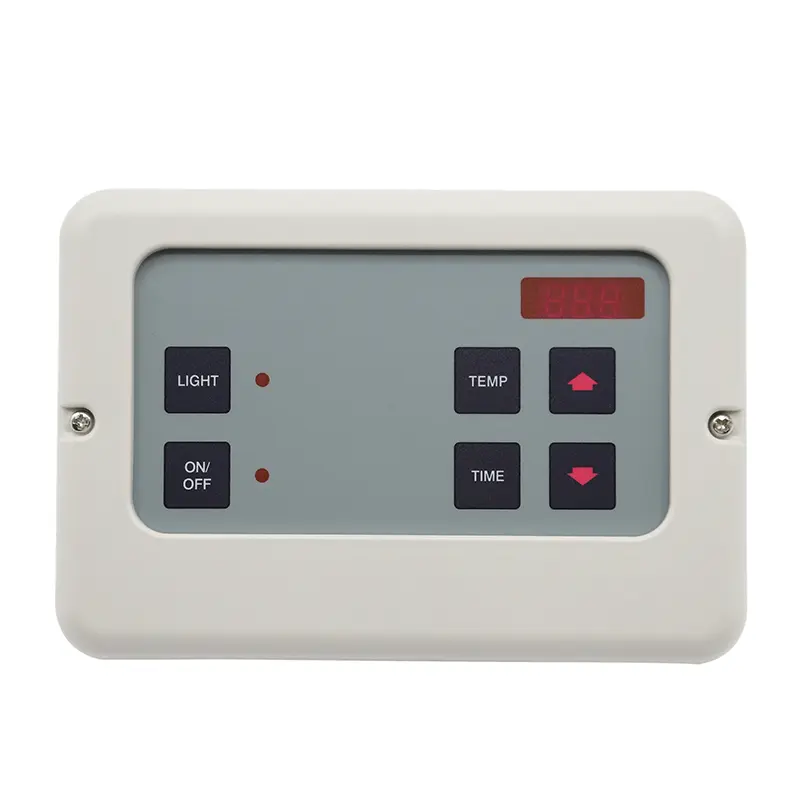

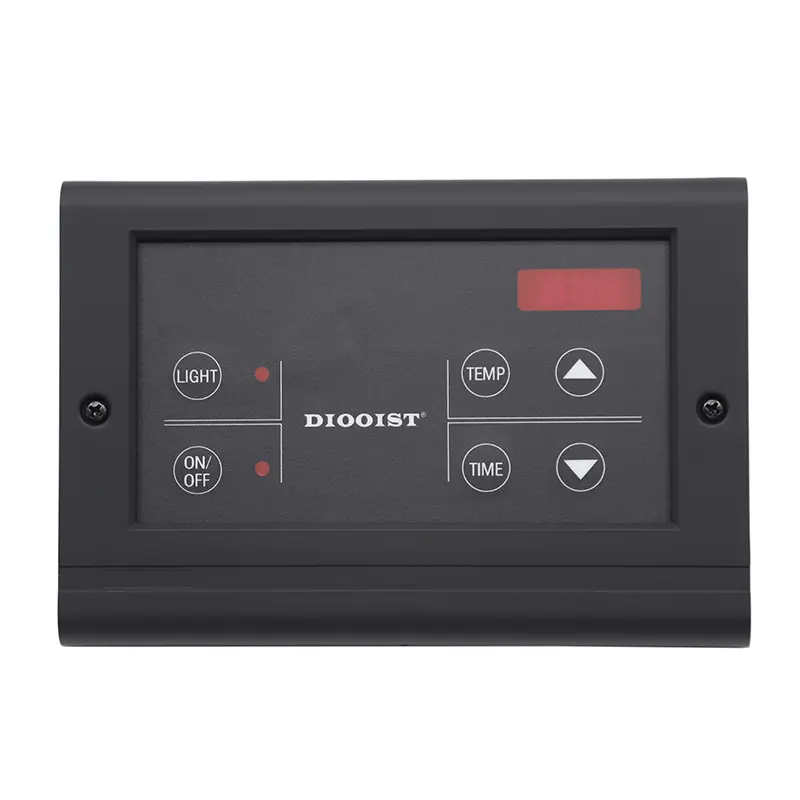

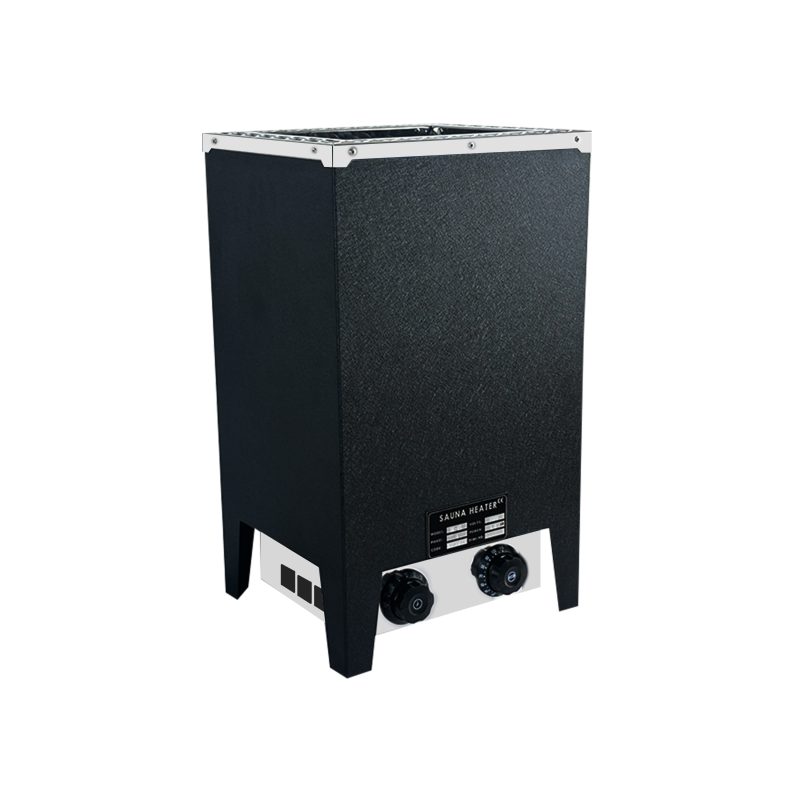

The product has two methods: internal control and external control. The internal control adopts knob type, and the external controller has button and touch type
1. Technical quality assurance.
2. Shell cold rolled plate high temperature baking paint.
3. High temperature protection, current cut off, multiple safety protection, use more assured.

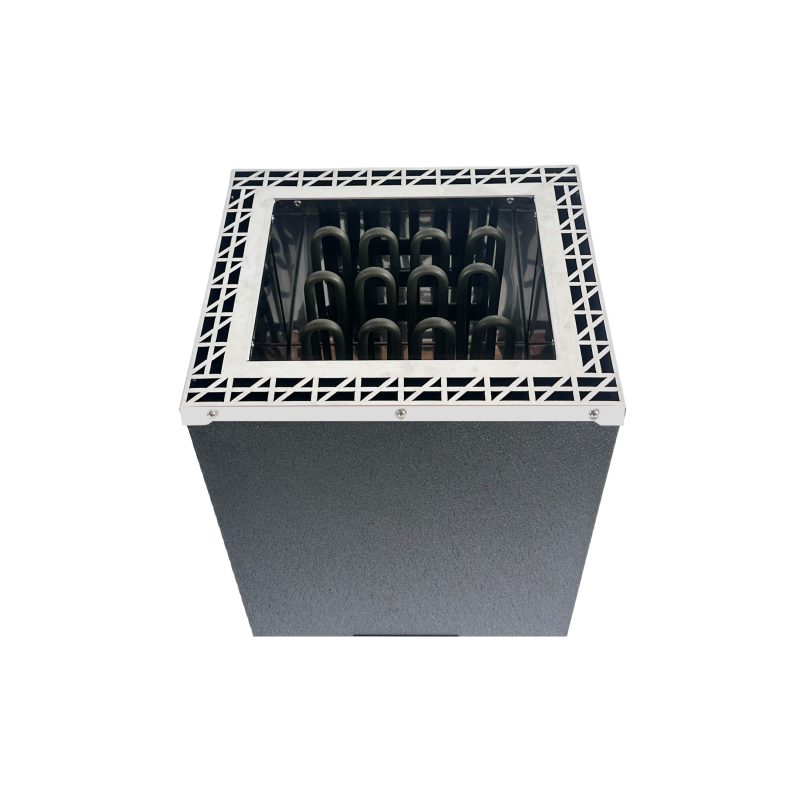

4. 840 stainless steel electric heating tube, more durable.
5. Fast heat generation, fast heat dissipation, fast temperature rise.
6. Intelligent temperature control, more convenient to use.
7.Adjust arbitrarily within the temperature and time range.
| Model | Power (kw) | Room(M3)* | Voltage(AC V) | Current(A) | Specifications for power wire | Product size/mm | packaging size |
| DL-15 | 1.5kw | 2-3 | 200-240V(1PH/2PH) | 13 | 11AWG or 4.0mm2 | 300*260*510 | 350*310*550 |
| DL-30 | 2.7kw | 2-3 | 200-240V(1PH/2PH) | 13 | 11AWG or 4.0mm2 | ||
| DL -45 | 4.5kw | 3-6 | 200-240V(1PH/2PH) | 21 | 10AWG or 4.0mm2 | ||
| 208V/3PH | 13 | 11AWG or 2.5mm2 | |||||
| 380-415V/3PH | 7 | 14AWG or 1.5mm2 | |||||
| DL-57 | 5.7kw | 5-7 | 200-240V(1PH/2PH) | 26 | 10AWG or 4.0mm2 | ||
| 208V/3PH | 16.5 | 11AWG or 2.5mm2 |
